BF6M1015C water-cooled diesel engine is a product produced by Huachai under the license of Deutz Company of Germany. This series of products has a V-type 90° structure and has two forms of 6 and 8 cylinders. Through the integrated multifunctional design, the number of parts of the whole machine is greatly reduced, and the modular structure can adapt to various matching requirements; the whole machine adopts the internal oil channel and internal water channel structure, which reduces the external pipeline of the diesel engine and reduces the potential possibility of failure; and adopts the world's advanced four-valve, crankshaft connecting rod shaft diameter stagger and other technologies, making the engine more powerful, running more smoothly, working more reliably, maintaining more simply, and emission more environmentally friendly, which is better than the standard limit of Euro II regulations.
Model: BF6M1015 / BF6M1015C / BF6M1015CP / BF8M1015C / BF8M1015CP
Intake Mode: Turbocharged / Turbocharged Inter-cooler / Turbocharged Inter-cooler / Turbocharged Inter-cooler / Turbocharged Inter-cooler
Bore / Stroke(mm):132x145 / 132x145 / 132x145 / 132x145 / 132x145
Displacement(L): 11.906 / 11.906 / 11.906 / 15.874 / 15.874
Prime Power(kw): 223~240 / 273~300 / 300~330 / 364~400 / 400~440
Rated speed(r/min): 1900/2100
Maximum torque/speed(N.m)/(r/min): 1420/1300; 1978/1200; 1876/1300; 2640/1200; 2500/1300;
Minimum fuel consumption (g/kw.h): 209 / 200 / 202 / 200/ 211
Idle Speed(rpm): 600
Dimensions(mm):1043x932x1174;1043x932x1174;1043x932x1174;1151x955x1174;1151x955x1174;
Weight(kg): 850 / 850 / 850 / 1060 / 1060
Technical parameters:
Model: BF6M1015CP / BF8M1015CP
Working Cycle: Four stroke
Mixed Gas System: direct injection, turbocharged and inter-cooler
Cylinder Head Arrangement: V-shaped 90 degree angle
Rotation Direction: facing the flywheel, counterclockwise
Number of Cylinders: 6 / 8
Firing order: A1B3A3B2A2B1 / A1B4A4B1B3A3B2A2
Firing interval: 120° / 90°
Bore / Stroke(mm): 132x145
Single cylinder capacity: 1.984
Cylinder capacity:11.906 / 15.874
Compression Ratio: 16.5
Maximum ignition pressure: 155 bar
Engine speed: 1500-2100
Engine minimum speed: 550
Oil consumption rate: less than 0.3% of fuel consumption
Engine weight: 850 / 1060
Lubrication system:
Lubrication type: pressure lubrication
Oil filter: replaceable
Oil pump flow 2100r/min: 170L/min, 10.2m³/h; / 210L/min, 12.6m³/h;
Cooling system
Maximum coolant temperature: 103℃
Thermostat opening temperature: 79/83
Coolant volume: 17 / 21
System pressure: 0.9-1.1bar
Coolant pressure: ≤1.8bar
Cooling water pump
Engine speed: 2100
Water pump flow: 375 L/min, 22.5m³/h; / 500 L/min, 30m³/h;
Water pump pressure: 2.4 bar
Maximum allowable resistance: 0.7 bar
Engine speed: 1900
Water pump flow: 340 L/min, 20.4 m³/h; / 453 L/min, 27.2 m³/h;
Water pump pressure: 2.2 bar
Maximum allowable resistance: 0.65 bar
Engine speed: 1900
Water pump flow: 340 L/min, 20.4 m³/h; / 453 L/min, 27.2 m³/h;
Water pump pressure: 2.2 bar
Maximum allowable resistance: 0.65 bar
Engine speed: 1500
Water pump flow: 260 L/min, 15.6 m³/h; / 347 L/min, 20.8 m³/h
Water pump pressure: 1.25 bar
Maximum allowable resistance: Maximum 0.35 bar

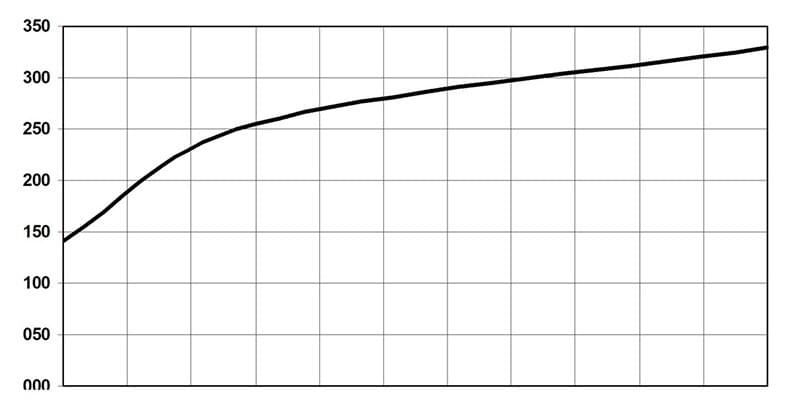

BF6M1015CP external characteristic curve
Power
BF6M1015CP external characteristic curve
Torque

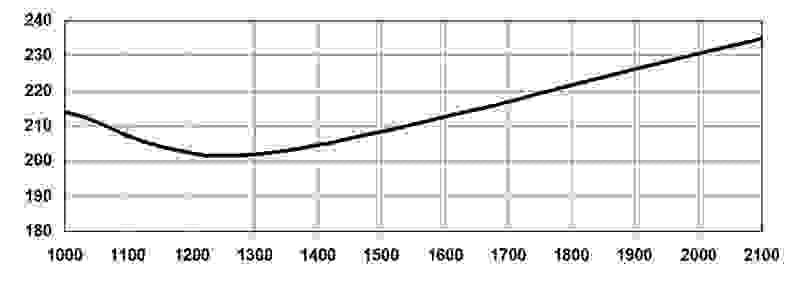

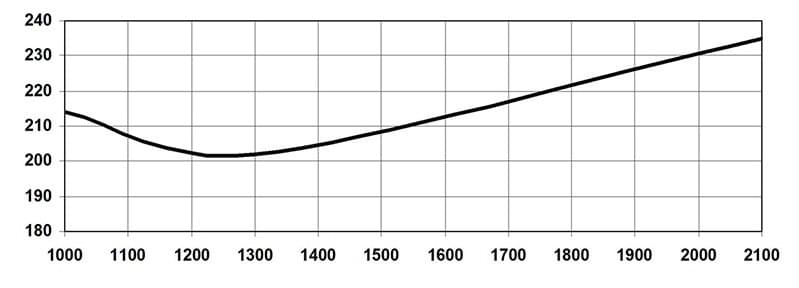

BF6M1015CP external characteristic curve
Fuel consumption

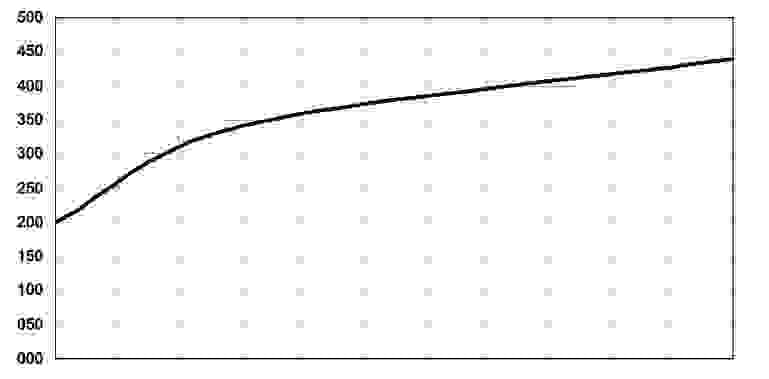

BF8M1015CP external characteristic curve
Power

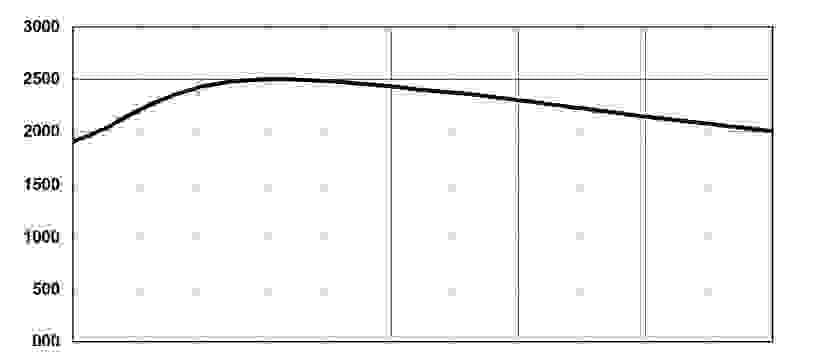

BF8M1015CP external characteristic curve
Torque

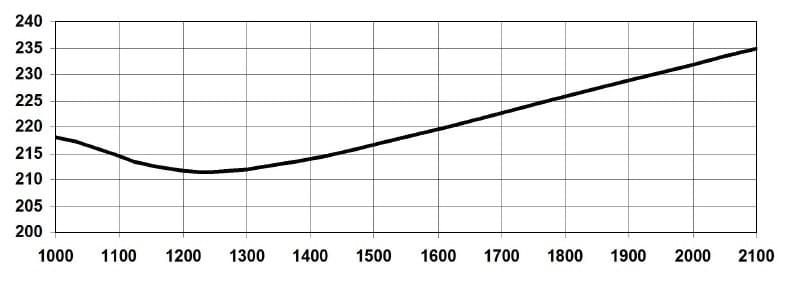

BF8M1015CP external characteristic curve
Fuel consumption

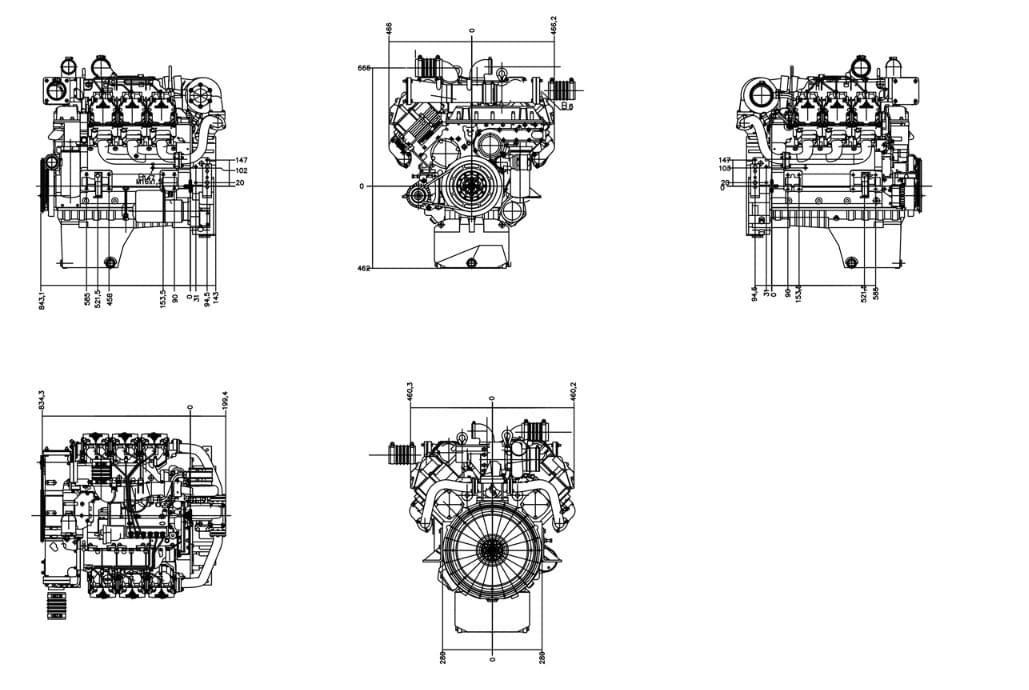

External Dimensions:
Application:
Material Handler, Beam Carrier, Rotary Drilling Rig, Rail Grinder, Wheel and Orbital Gantry Cranes
, Ballast Regulator, Self-Propelled Modular Transporter, Cotton Picking Machine, Rail-Laying Machine,
