Basic Info.
Model NO.:DSE710
Export Markets: Global
Additional Info.
Trademark:DEEP SEA
Origin: UK
HS Code:850300909
Production Capacity:10, 000PCS/Year
Product Description

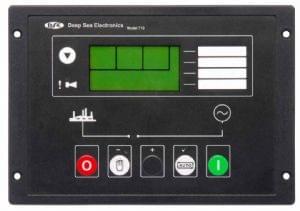

DSE710 AUTO START & AUTO MAINS FAILURE CONTROL MODULES
INTRODUCTION
The DSE 710 remote start module has been primarily designed to control a generator, starting the engine automatically upon receipt of a start signal, transferring the load automatically to the generator if required. If required the generator can be started and stopped manually.
The DSE 710 monitors the engine, indicating that the generator is running via an LED. An LCD display is used to indicate further status and alarm conditions. When a fault is detected the generator is automatically shut down, giving a true first up fault condition.
Using the module's front panel configuration editor it is possible to alter selective operational sequences, timers and alarm trips. Comprehensive configuration and monitoring is also available using the 700 series PC configuration software for Windows™ .
The module is housed in a fully enclosed robust plastic case for front panel mounting, offering a high IP rating of 56 with the optional gasket. Connections to the module are via locking plug and sockets.
